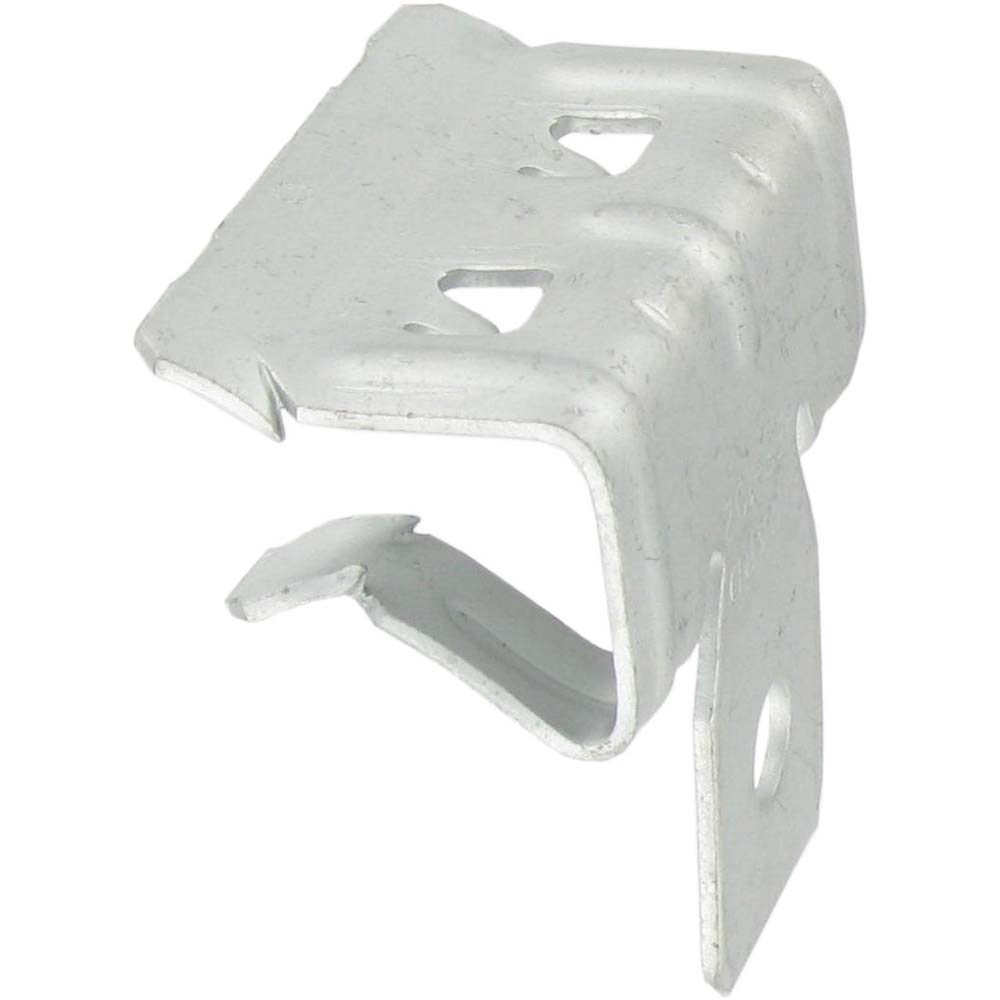

Britclips® Girder Clips
Britclips® Girder Clips

Britclips® Girder Clips

for a solid fixing to steel construction without the need for welding or drilling
with fixing hole (Ø 6.5 mm) to fix S-hook, bolt/nut, etc.
material: spring steel (type CS70)
surface treatment: Delta-Tone 9000 (480 hours)

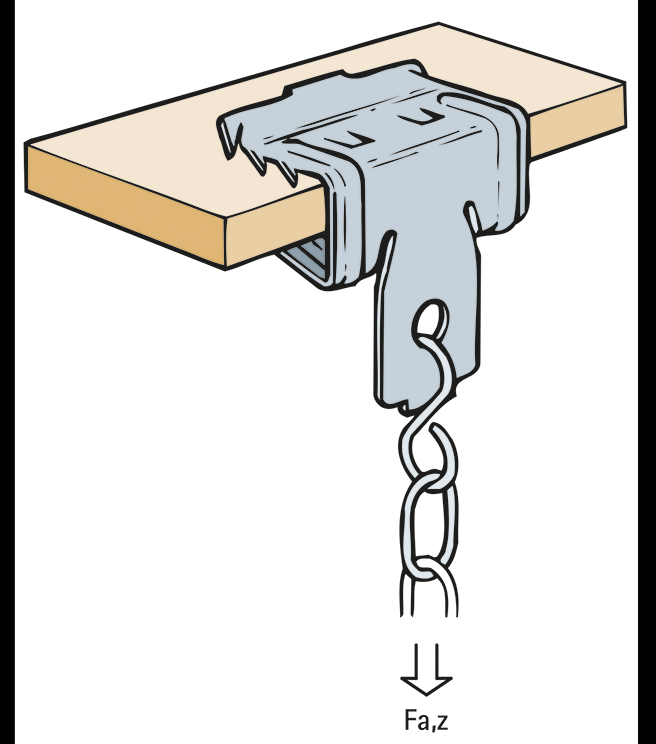

CodeFor flange sizeFixing HoleHeightTotal HeightTotal WidthTotal DepthMaximum Allowed Load Faz
 fsFHhHWDtTFa,z
 (mm)(mm)(mm)(mm)(mm)(mm)(N)
BC125 2-4 6.5 20 29 28 15 450
BC250 4-8 6.5 21 35 32 22 950
BC500 8-14 6.5 30 45 32 22 950
BC750 14-20 6.5 32 46 38 22 950
BC1000 20-28 6.5 47 56 38 22 950

No detailed specifications are available for this product.
